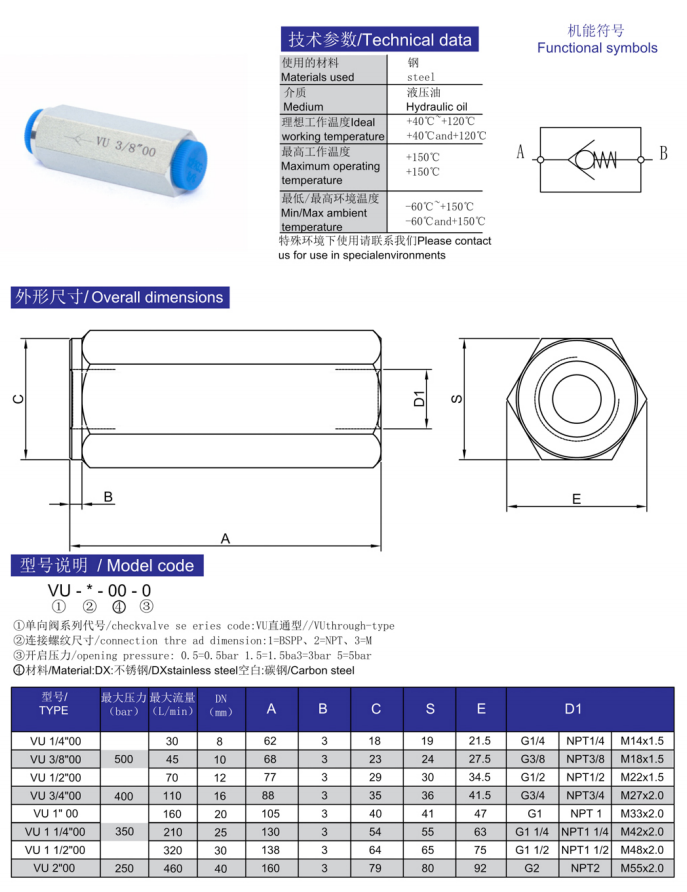

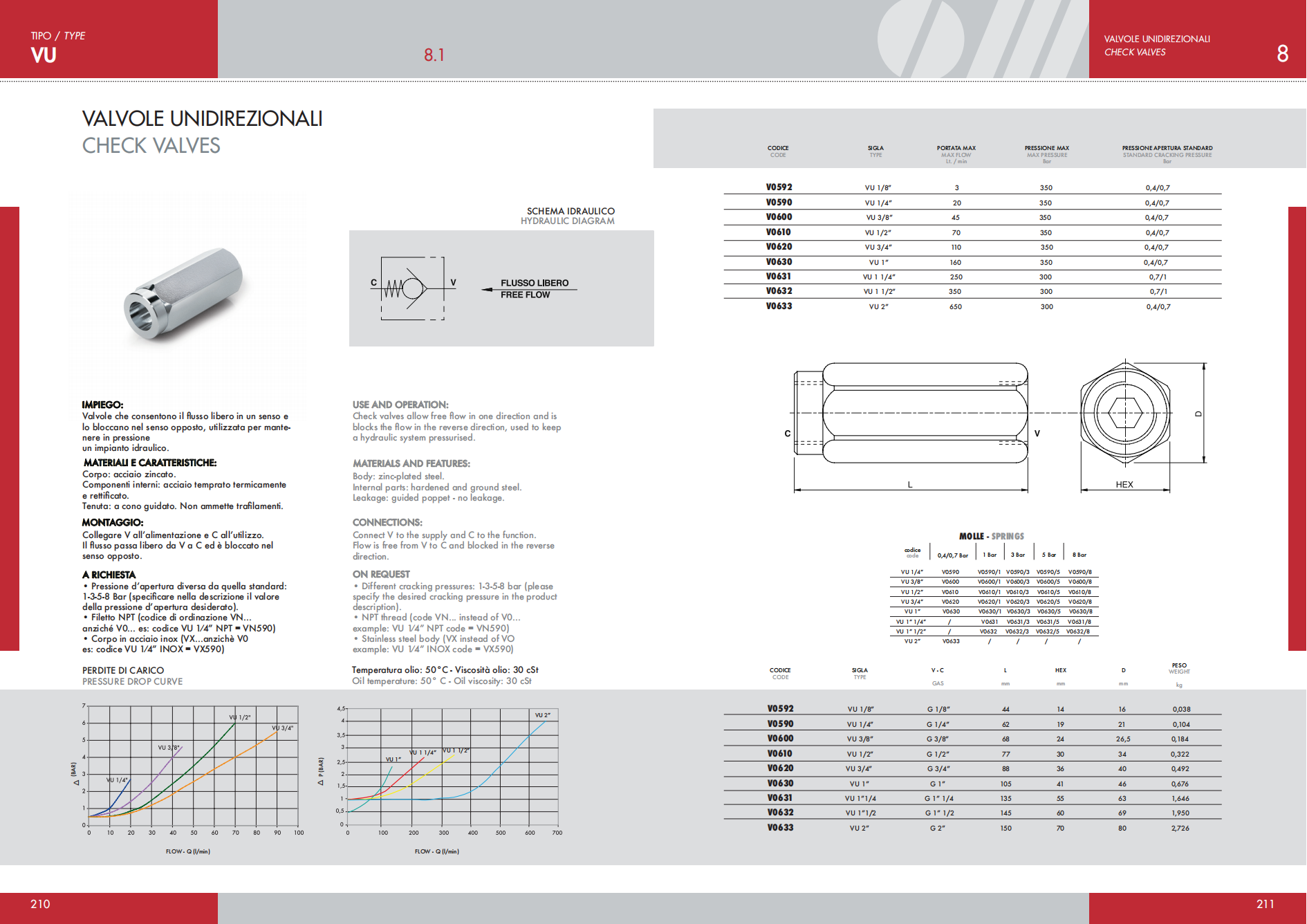

USE AND OPERATION:

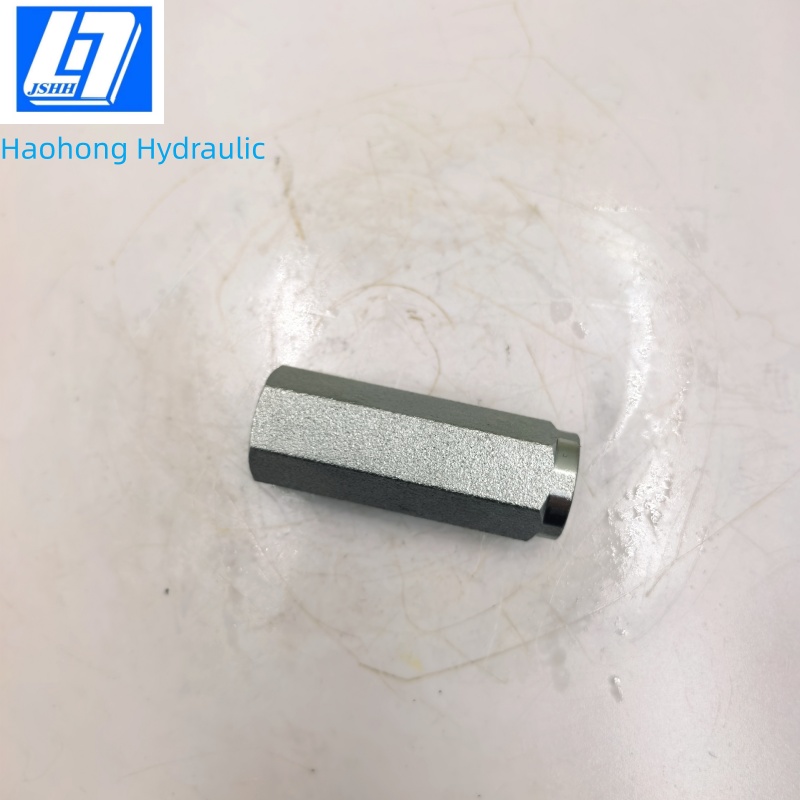

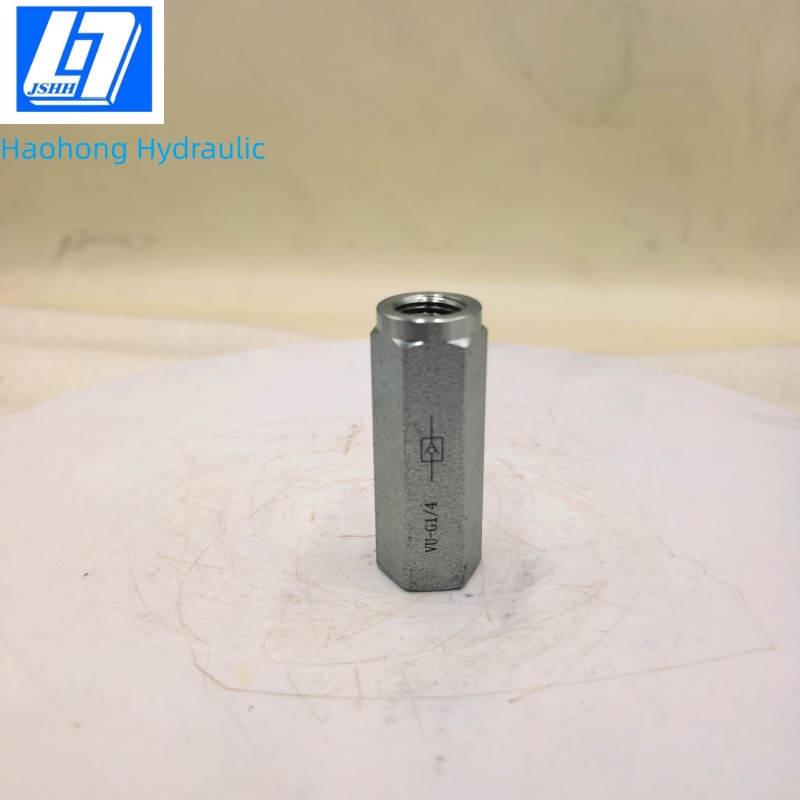

Check valves allow free flow in one direction and is blocks the flow in the reverse direction, used to keep a hydraulic system pressurised.

MATERIALS AND FEATURES:

Body: zinc-plated steel.

Internal parts: hardened and ground steel.

Leakage: guided poppet - no leakage.

CONNECTIONS:

Connect V to the supply and C to the function. Flow is free from V to C and blocked in the reverse direction.
