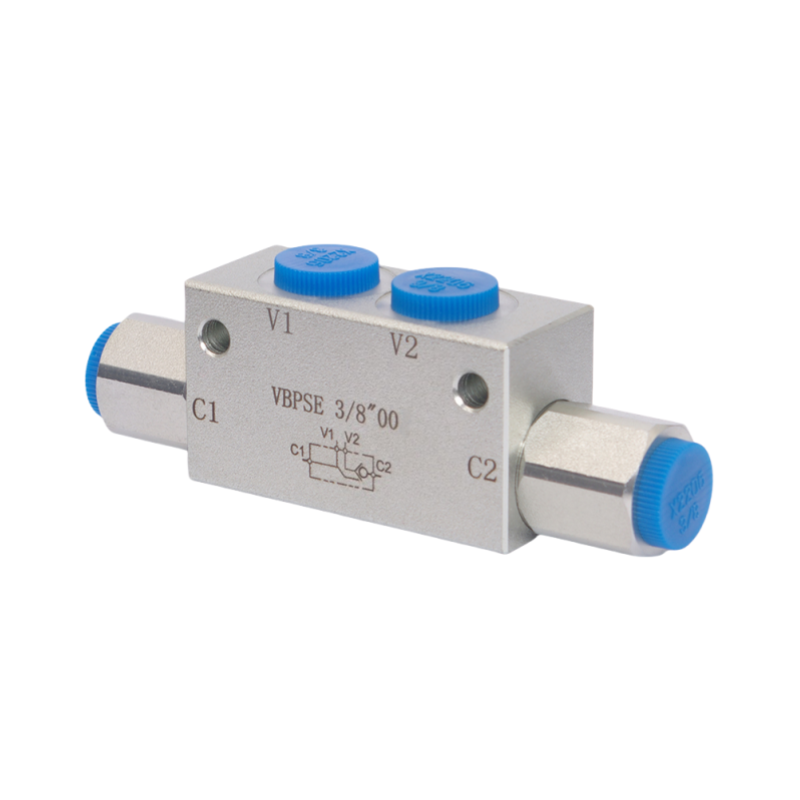

Use and Operation
These valves are used to block the cylinder in one direction. The flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.

Materials and Features

• Body: zinc-plated steel

• Internal Parts: hardened and ground steel

• Seals: BUNA N standard

• Poppet Type:  any leakage

Applications

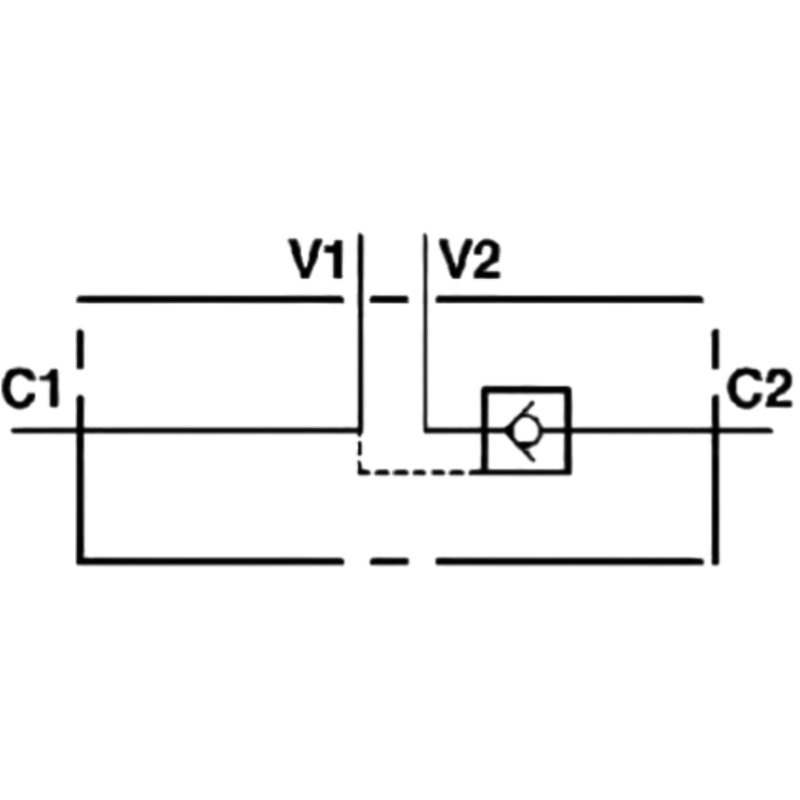

Connect V1 and V2 to the pressure flow, C1 to the free flow side of the actuator and C2 to the actuator’s side you want the flow to be blocked.

On Request

• without seal on pilot piston

• 1 Bar spring

• 8 Bar spring
