Specification 规格
| MTCV | 02 | W | 1 | K | C |
|---|---|---|---|---|---|
| Product Series | Port Size 油口 | Control Port 控制油口 | Direction Of Flow 流体方向 | Adjusting Type 调整方式 | Design No. |

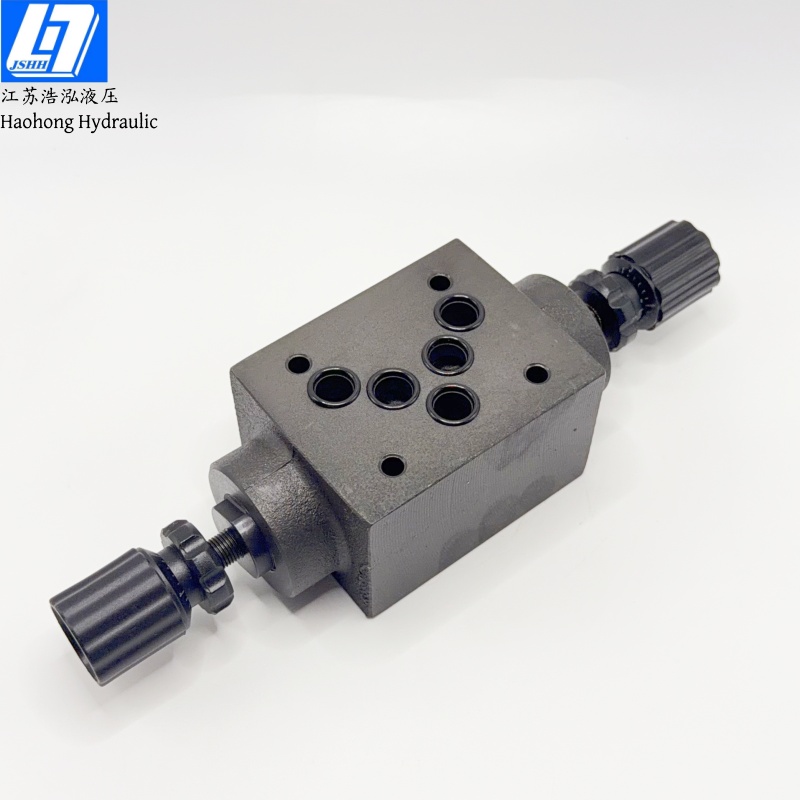

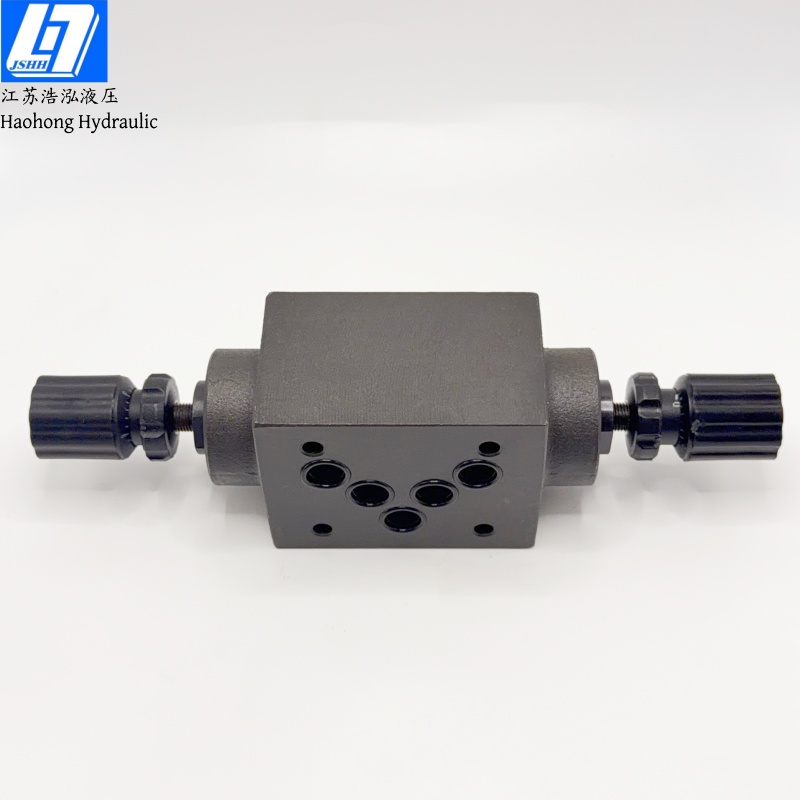

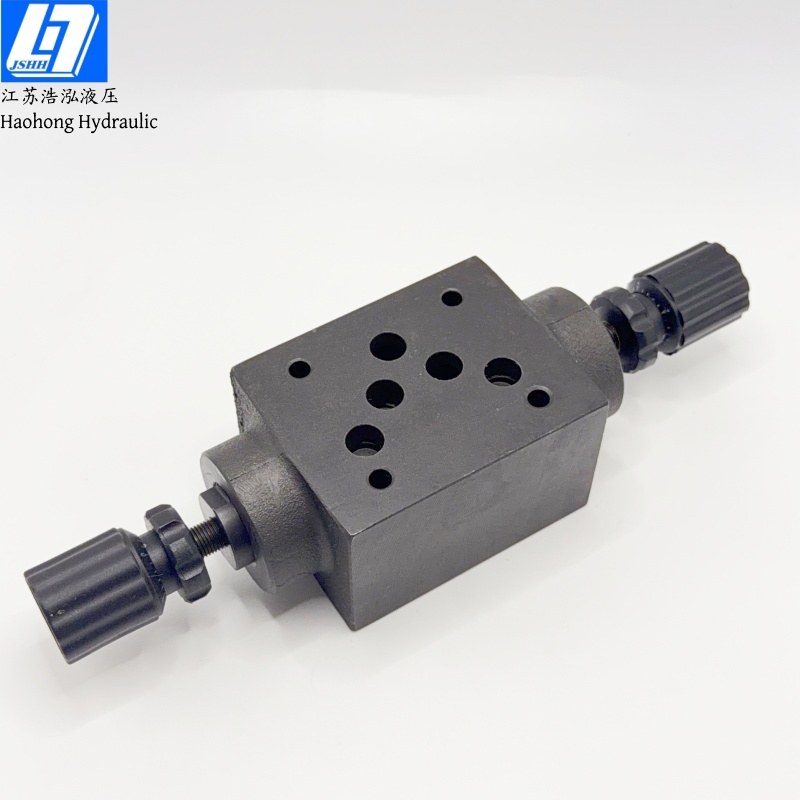

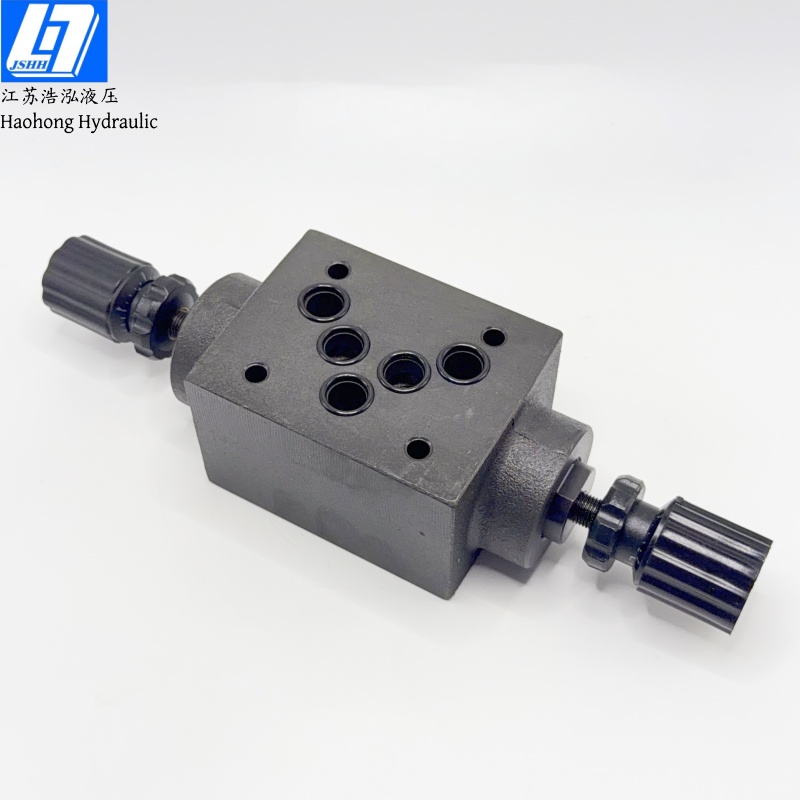

Modular Throttle and Check Valve Series 叠加式单向节流阀 | 02: 1/4" | A: A port B: B port W: A & B port | 1: Meter In 进油节流 None: Meter Out 无标记：出口节流 | K: Knob 手轮 (Standard Type) J: Screw Adjustment Knob | |
| 03: 3/8" |
Model No.型号
MTC-02-B-1-K-C, MTC-02-W-1-K-C, MTC-02-W-J-C, MTC-03-A-K-C, MTC-03-B-K-C, MTC-03-W-K-C
Conversion Table:转换表
| Model | Size | ISO | CETOP | NFPA | DIN | |
|---|---|---|---|---|---|---|
| 02 | 1/4" | 6mm | ISO 03 | CETOP 3 | D03 | NG 6 |
| 03 | 3/8" | 9mm | ISO 05 | CETOP 5 | D05 | NG 10 |
Model Code 型号代号
Measurement 尺寸
