Steel Body High-Pressure Cartridge Flow Divider (2-Way), 2-5 L/min

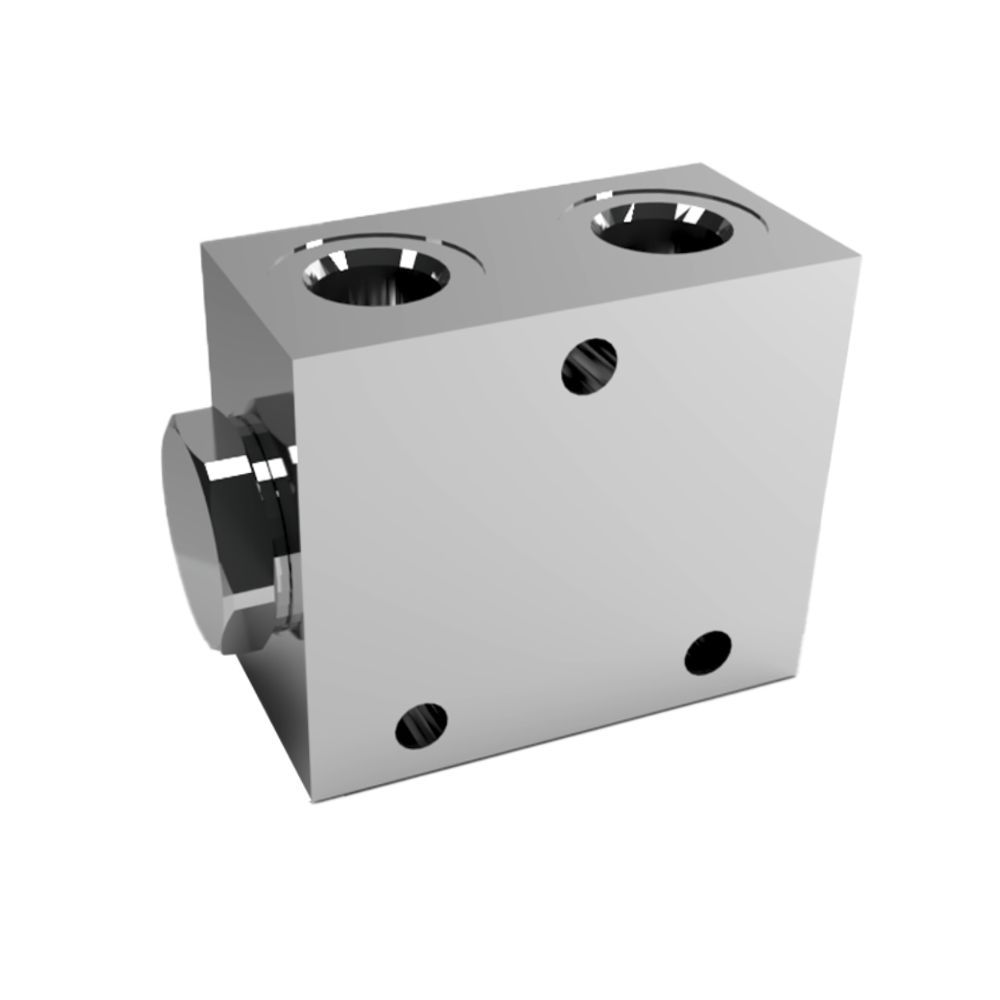

This Steel Body High-Pressure Cartridge Flow Divider is a compact, 2-way hydraulic flow control valve designed for precise flow splitting in dual-circuit systems. Manufactured by Oleodinamica Marchesini, it offers reliable performance in high-pressure hydraulic applications, making it ideal for industrial and mobile machinery setups.
These valves are used when two identical actuators — not mechanically linked — need to operate in perfect synchrony, both during extension and retraction, while being powered by a single pump and controlled by one valve.
| THREAD | L mm | L1 mm | L2 mm | L3 mm | H mm | H1 mm | H2 mm | S mm | WEIGHT Kg |
|---|---|---|---|---|---|---|---|---|---|
| 3/8" BSP | 69 | 37 | 40 | 77.2 | 60 | 45 | 7.5 | 35 | 0.986 |

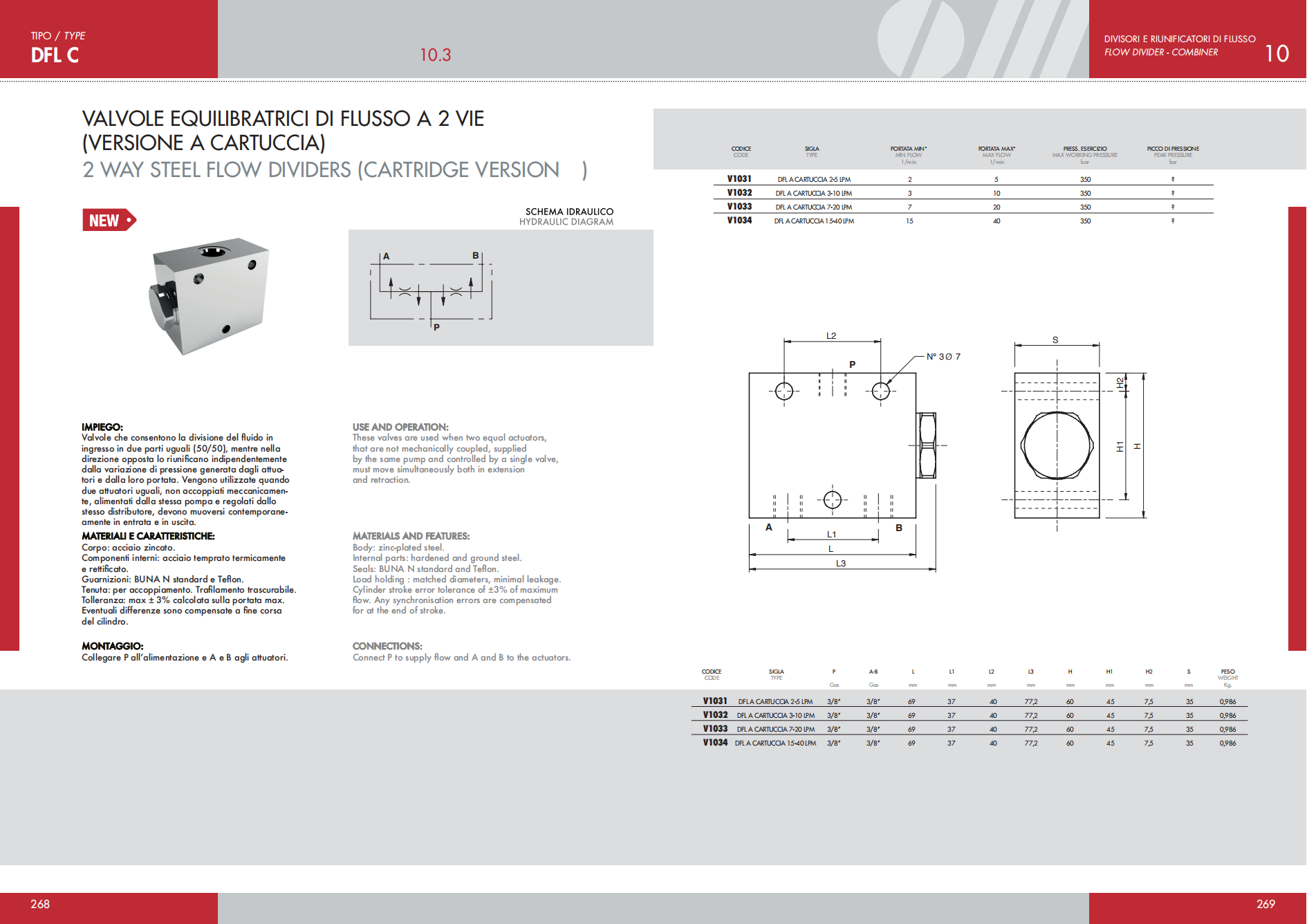

VALVE MODEL COMPARISON – 2 WAY HYDRAULIC STEEL FLOW DIVIDER CARTRIDGE
| CODE | MIN FLOW LT/MIN | MAX FLOW LT/MIN | MAX WORKING PRESSURE BAR |
|---|---|---|---|
| V1031 | 2 | 5 | 350 |
| V1032 | 3 | 10 | 350 |
| V1033 | 7 | 20 | 350 |
| V1034 | 15 | 40 | 350 |
TECHNICAL SPECIFICATIONS
USE AND OPERATION
These valves are used when two equal actuators, that are not mechanically coupled, supplied by the same pump and controlled by a single valve, must move simultaneously both in extension and retraction.
MATERIALS AND FEATURES
Body: zinc-plated steel. Internal parts: hardened and ground steel. Seals: BUNA N standard and Teflon. Load holding : matched diameters, minimal leakage. Cylinder stroke error tolerance of ±3% of maximum flow. Any synchronisation errors are compensated for at the end of stroke.
CONNECTIONS
Connect P to supply flow and A and B to the actuators.
