Product Features:

Aluminium Body

3/4" BSP (inlet) & 1/2" BSP (outlet) ports

Flow Rate: 40-90 L/Min

Max Pressure: 210 Bar

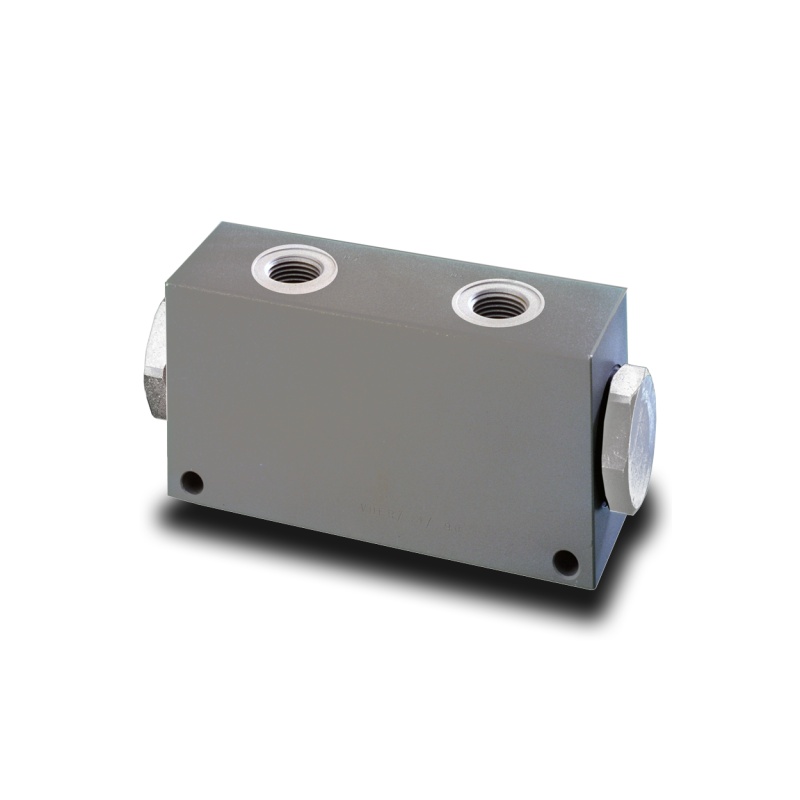

3/4" BSP (inlet) & 1/2" BSP (outlet) ports. Aluminium body with fixing holes 50/50 split. This flow divider is designed to separate flow into two equal working lines.

NOMINAL FLOW: 40-90 L/min (23.8-39.6 GPM)
MAX PRESSURE: 210 BAR (3050 PSI)
FLUID: Mineral based oil
MAX LEVEL OF CONTAMINATION: 18/16/13 ISO4406
FLUID TEMPERATURE: with NBR seals from -20°C (-4°F) to 80°C (176°F)
ENVIRONMENTAL TEMP. FOR WORKING CONDITIONS: from -40°C (-40°F) to 100°C (212°F)
